| Water Soluble Vitamins | Fat Soluble Vitamins |
|
Return to THCME Medical Biochemistry Page
![]() |
| Thiamin structure |
![]() |
| Thiamin pyrophosphate |
![]() |
| Riboflavin structure |
![]() |

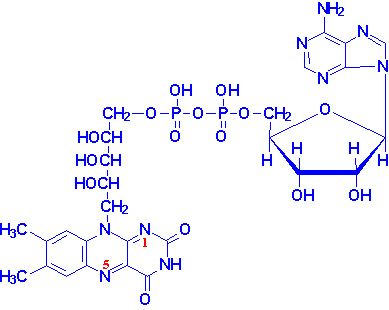

| Structure of
FAD nitrogens 1 & 5 carry hydrogens in FADH2 |
![]() |
![]() |
| Nicotinamide | Nicotinic Acid |
![]() |

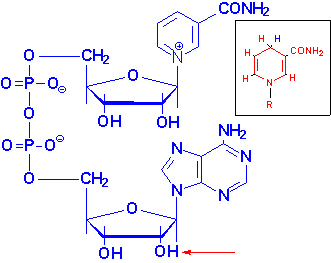

| Structure of
NAD+ NADH is shown in the box insert. The -OH phosphorylated in NADP+ is indicated by the red arrow. |
![]() |
| Pantothenic Acid |
![]() |

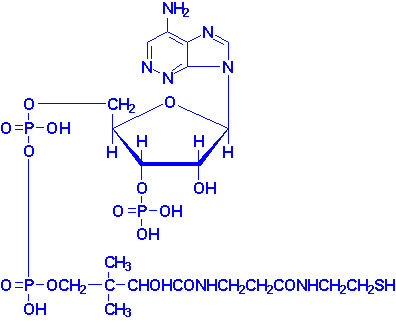

| Coenzyme A |
![]() |
![]() |
![]() |
| Pyridoxine | Pyridoxal | Pyridoxamine |
![]() |
| Pyridoxal Phosphate |
![]() |
| Biotin |
![]() |

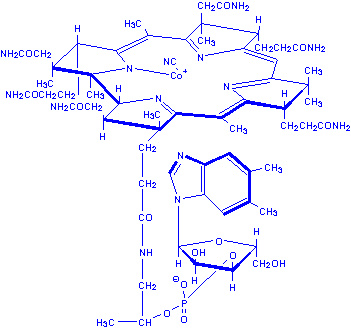

| Deoxyadenosylcobalamin |
![]() |

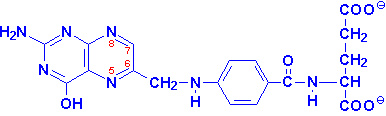

| Folic Acid positions 7 & 8 carry hydrogens in dihydrofolate (DHF) positions 5-8 carry hydrogens in tetrahydrofolate (THF) |
![]() |
| Ascorbic Acid |
![]() |
![]() |
| All-trans-retinal | 11-cis-retinal |
![]() |
![]() |
| Retinol | Retinoic Acid |
![]() |
![]() |
| Ergosterol | Vitamin D2 |
![]() |
![]() |

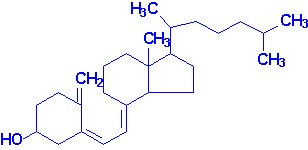

| 7-Dehydrocholesterol | Vitamin D3 |
![]() |
![]() |
| 25-hydroxyvitamin D3 | 1,25-dihydroxyvitamin D3 |
![]() |

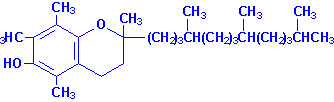

| a-Tocopherol |
![]() |
| Vitamin K3 |
